To reorder the display,click on a sample and drag the position using the arrow to the position you desire. In this illustration, the purple top vacutainer sample type position will be repositioned to the bottom .
...
Click to drag position
Notice the position of the purple top vacutainer sample type. Click on the Next button.
...
Click on the Accept button
...
...
How to create a unit of measure
The manage unit of measure is used to create units of measure. To access the manage unit of measure, Follow steps 1 and 2 under how to access the OpenELIS administrator module. Click the manage unit of measure under the test organization section.
...
Click
...
Click on unit of measure
...
Enter the unit of measure under the text box. In this illustration, Micrograms per litre (mcg/L) is entered.
...
...
Click on the Next button.
...
Click on the Accept button. The new unit of measure will be created successfully. Otherwise, click on the Reject button to cancel.
...
Click accept
...
...
Manage panels
The manage panels is used to create, set display order or assign tests to panels. To access the manage panel option, Follow steps 1 and 2 under how to access the OpenELIS administrator module. Click on add result select list under the test organization section.
...
Click on create a new panel under the type page
...
...
Enter both the English and French names for the new sample type. In this illustration, test panel is entered.
...
...
Select the sample type from the Sample Type drop-down menu. In this illustration, Whole blood is selected.
...
Click on the Next button.
...
Click
...
Click on the Accept button. The newly created panel will be listed under the inactive panel section.
...
Click accept
...
Inactive panels
...
How to assign a test to a new panel
Click on the test assignment under the page.
...
...
Select the panel to assign tests to under the panel drop-down menu.
...
Click on
...
Click on the test to be assigned to the panel under available tests.
...
...
To select multiple tests, hold the SHIFT key on your windows operating system and click on the desired tests.
...
...
Click on the < arrow to move the selected test(s) under the panel.
...
Move tests to panel.Note: To remove a test from the panel, click on the test to select it then click on the > arrow.
...
...

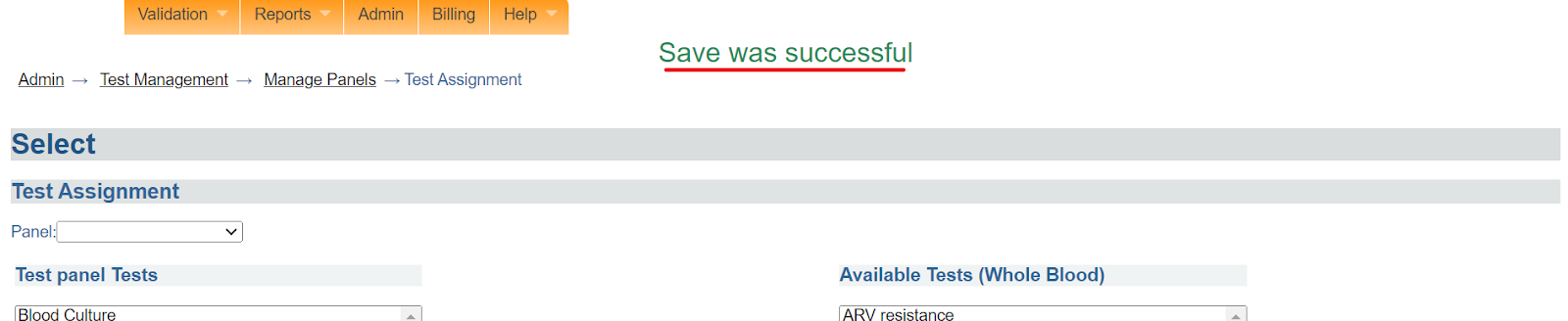

Click on the Save button. A “save successful” message will be displayed.
...
Click save
Note: The laboratory team can now access the newly created panel.
...
...
How to establish the display order for panels
Click on Set Panel Order
...
...
To reorder the display,click on a panel and drag the position using the arrow to the position you desire. In this illustration, the test panel position will be repositioned to the top .
...
...
Notice the position of the test panel . Click on the Next button.
...
Click on the Accept button. The panel display position will be reordered successfully.
...
Click accept
